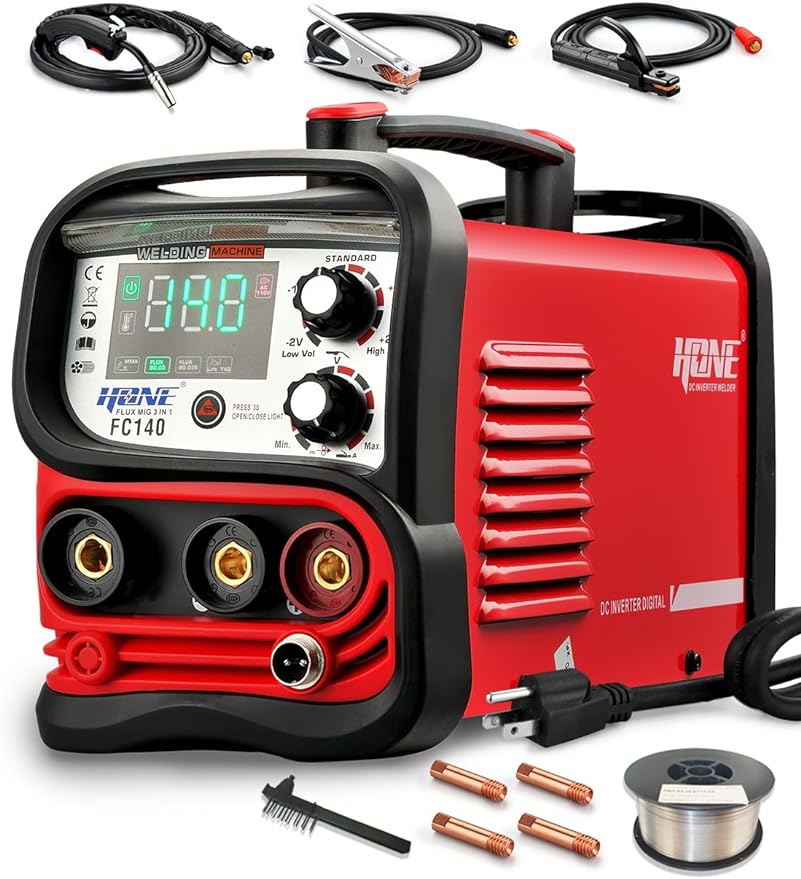

Flux Core Welder 110V, Actual 140Amp MIG Welder 3 in 1 Synergic Gasless Wire Welder/Stick Welder/Lift TIG Welding Machine, IGBT Inverter with Large LED Display and 2lb Welding Wire.

$149.99
Quantity

Description

Product Description

Found in 2002, the HONE started the welding industry in 2005, was committed to delivering originality and customer-first brand promise.

HONE welding machines are based on DIY and industry market, home users, and welding experts who need to tailor the high-end welder brand.

FC 140 Features:

  • The FC140 3 in 1 welding machine is a lightweight and ultra-portable a multifunctional welder that connects to 120 volt power. The intuitive user interface, easy setup and weld in no-time.
  • This wire feed welder is an excellent choice for Flux-Cored welding, also suitable for Stick welding, Lift Tig welding.
  • Flux core weld: Synergic adjustment function, even a beginner can easily use it.
  • When use Flux core welding function, the fine tune voltage knob is generally in the middle position, fine tune +/-2V.
  • Stick weld functions: Built-in Hot-start makes the arc striking easier, Arc-force provide smoother welding and deeper penetration, Anti-stick easy the electrode removal from the workpiece.
  • Auto protection against over heat, over current, and short circuit, feel free to use, it’s very safe.
  • Outstanding Arc stability with low spatter and deep bath.

FC140 Parameter: The bellow data are real.

  • Power Supply --------------- AC110V (90 ~ 140V)
  • Rated Input Current (A) ---- 39A(MIG) / 43A(MMA) / 29A(TIG)
  • No Load Voltage ------------ 52±5V
  • Welding Current (A) -------- 20 ~ 140A(MIG & MMA) / 10 ~ 140A(TIG)
  • Duty Cycle (%) -------------- 35%MIG / 30%MMA / 40%TIG
  • Flux Core MIG Wire --------- Mild Steel E71TGS .030 / .035 inch, 2-Pound Spool
  • Electrode Diameter --------- 1/16 inch ~ 1/8 inch (1.6mm ~ 3.2mm)
  • Electrode Type -------------- AWS E6013, E7018, E6011, E6010, E308L etc
  • Protection Grade ------------ IP21S
  • Insulation Grade ------------ H

Real data show you can't go wrong

  • Workpiece thickness Min. 1/32 in (0.8mm) fits with welding current 20 Amp.
  • Workpiece thickness Max. 3/8 in (9.5mm) fits with welding current 140 Amp.

Advanced IGBT Technology

  • Unique IGBT control mode improves the reliability of welding machine, provide smoother welding and deeper penetration, stable welding current.

Humanized Operation Design

  • Just press the function button 3 seconds, can open the LED light, it's convenient very much for you to work in the unlit enviroment.
  • Then press the function button 3 seconds, close the LED light.

Portable Design, Easy to Carry

  • Mini size and light weight. Portable carry with adjustable shoulder strap, it is convenient for welding indoors and outdoors.The weighs only 10.1Ibs help you reduce fatigue at work.

Perfect Welding Results

  • Whether Flux core weld or Stick weld or Lift Tig weld, the welding effects of the workpiece is full, flat, deep penetration, and low spatter. It is an ideal stick welder for household and small workshop.

Multi-Application

  • You can build and repair all kinds of projects, such as garden fences, roomroofs, bicycle, iron gate, metal shelf etc, welding mild steel, carbon steel, stainless steel and cast iron.

SAFETY CAUTION:

  1. Wear eye, ear, and body protection equipment.Insulate.
  2. yourself from welding machine and ground.
  3. Keep your head out of fumes and keep flammable materials away.
  4. Use ventilation or exhaust to remove fumes from the breathing zone.
  5. Do not touch electrically live parts or electrodes with skin or wet clothing.
  6. Avoid welding in the open air unless sheltered from sunlight and never let rain or water wet the machine.

Tips:

If the welding machine fails to arc, it may be due to the acidity and alkalinity of the welding rods. You can try to exchange connections, avoid the wrong terminal connect. Also check your rods head, confirm the flux not cover iron tip.

FC140 - Mig Welder 110V Sim-Stick 120 - Stick Welder 110V MMA140D - Stick Welder 110V/220V MMA140D-Y - Stick Welder Power-Stick 185D - Stick Welder 110V/220V
Customer Reviews
4.7 out of 5 stars
14
4.6 out of 5 stars
304
4.6 out of 5 stars
1,485
4.6 out of 5 stars
1,485
4.6 out of 5 stars
217
Price $149.99 $76.99 $99.80 $104.90 $139.99
Multi-Function Flux core MIG / ARC / Lift TIG ARC ARC ARC ARC / Lift TIG
Power Supply 1PH ~ AC110V±15% 50/60Hz 1PH ~ AC110V±15% 50/60Hz 1PH ~ AC110V/220V ±15% 50/60Hz 1PH ~ AC110V/220V ±15% 50/60Hz 1PH ~ AC110V/220V ±15% 50/60Hz
Actual Welding Current 20～140A (MIG & ARC) / 10～140A (TIG) 10 ~ 120A 10 ~ 120A (110V) / 10 ~ 140A (220V) 10 ~ 120A (110V) / 10 ~ 140A (220V) 10 ~ 130A (110V) / 10 ~ 185A (220V)
MIG Wire Flux core wire E71TGS.0.30 & .035 inch, 2 Ib
Electrode Diameter 1/16 inch ~ 1/8 inch 1/16 inch ~ 1/8 inch 1/16 inch ~ 1/8 inch 1/16 inch ~ 1/8 inch 1/16 inch ~ 5/32 inch
Electrode Type E6013, E7018, E6010, E6011, E308L etc. E6013, E7018, E6010, E6011, E308L etc. E6013, E7018, E6010, E6011, E308L etc. E6013, E7018, E6010, E6011, E308L etc. E6013, E7018, E6010, E6011, E308L etc.
